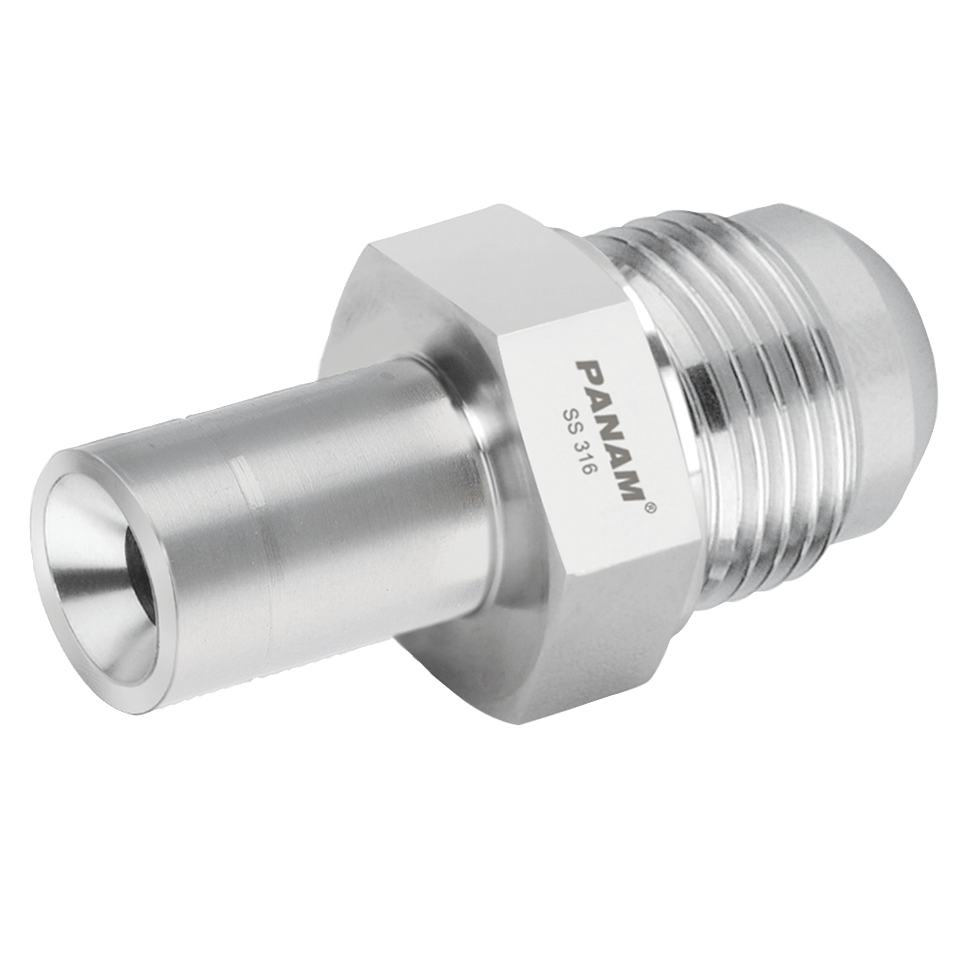

Reducing Adaptors

37° JIC Stainless Steel Flare Fittings Stainless Steel
UNF Tube x UNF Male
  • Technical specs
Part number Variation name Outside diameter in mm Size of male thread
303M10U1116 UNF Tube x UNF Male 18 1.1/16"-12
303M10U1316 UNF Tube x UNF Male 22 1.3/16"-12
303M10U1516 UNF Tube x UNF Male 25 1.5/16"-12
303M10U34 UNF Tube x UNF Male 12 3/4"-16
303M10U78 UNF Tube x UNF Male 16 7/8"-14
303M12U1116 UNF Tube x UNF Male 18 1.1/16"-12
303M12U1516 UNF Tube x UNF Male 25 1.5/16"-12
303M12U178 UNF Tube x UNF Male 38 1.7/8"-12
303M16U1316 UNF Tube x UNF Male 22 1.3/16"-12
303M16U1516 UNF Tube x UNF Male 25 1.5/16"-12
303M18U1516 UNF Tube x UNF Male 25 1.5/16"-12
303M18U158 UNF Tube x UNF Male 32 1.5/8"-12
303M18U178 UNF Tube x UNF Male 38 1.7/8"-12
303M25U158 UNF Tube x UNF Male 32 1.5/8"-12
303M25U178 UNF Tube x UNF Male 38 1.7/8"-12
303M6U1116 UNF Tube x UNF Male 18 1.1/16"-12
303M6U1516 UNF Tube x UNF Male 25 1.5/16"-12
303M6U34 UNF Tube x UNF Male 12 3/4"-16
303M6U716 UNF Tube x UNF Male 10 7/16"-20
303M6U78 UNF Tube x UNF Male 16 7/8"-14
