ISO6432 Mountings

Pneumatic Cylinders KELM Pneumatics

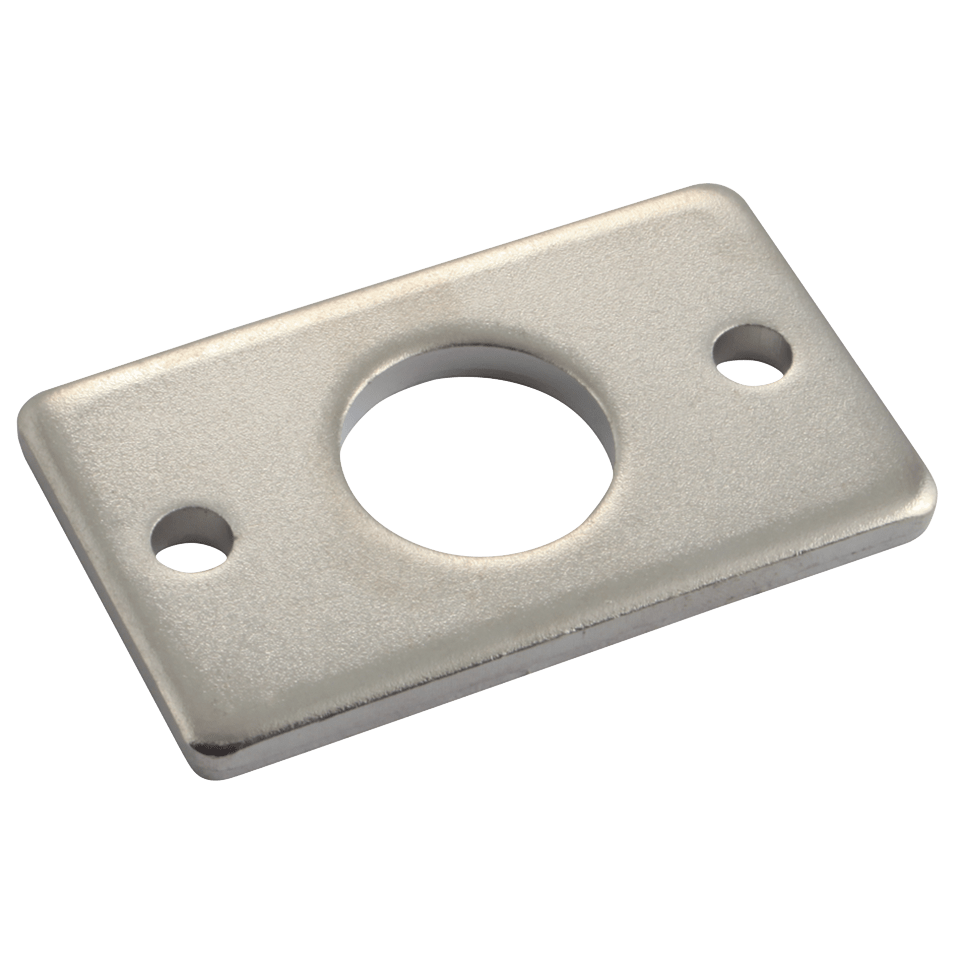

Front Flange Mounting FA
  • Technical specs
Part number Variation name Bore size in mm
F-KA12FA Front Flange Mounting FA 12/16
F-KA12LB Foot Mounting LB, (pair) 12/16
F-KA12SDB Rear Hinge Mounting SDB 12/16
F-KA12TC Front Trunnion Mounting TC 12/16
F-KA20FA Front Flange Mounting FA 20/25
F-KA20LB Foot Mounting LB, (pair) 20/25
F-KA20SDB Rear Hinge Mounting SDB 20/25
F-KA20TC Front Trunnion Mounting TC 20/25
F-KA32LB Foot Mounting LB, (pair) 32
F-KA32SDB Rear Hinge Mounting SDB 32
F-KA32TC Front Trunnion Mounting TC 32
F-KA40LB Foot Mounting LB, (pair) 40
F-KA40SDB Rear Hinge Mounting SDB 40
F-KA40TC Front Trunnion Mounting TC 40
F-KA8FA Front Flange Mounting FA 8/10
F-KA8LB Foot Mounting LB, (pair) 8/10
F-KA8SDB Rear Hinge Mounting SDB 8/10
F-KA8TC Front Trunnion Mounting TC 8/10
F-M04070U Piston Rod Universal Joint U 8/10
F-M04070YE Piston Rod Clevis Y 8/10
F-M06100II Piston Rod Clevis I 12/16
F-M06100U Piston Rod Universal Joint U 12/16
F-M06100YE Piston Rod Clevis Y 12/16
F-M08125F Piston Rod Floating Joint F 20
F-M08125II Piston Rod Clevis I 20
F-M08125U Piston Rod Universal Joint U 20
F-M08125YE Piston Rod Clevis Y 20
F-M10125F Piston Rod Floating Joint F 25/32
F-M10125II Piston Rod Clevis I 25/32
F-M10125U Piston Rod Universal Joint U 25/32
F-M1025YE Piston Rod Clevis Y 25/32
F-M12125F Piston Rod Floating Joint F 40
F-M12125II Piston Rod Clevis I 40
F-M12125U Piston Rod Universal Joint U 40
