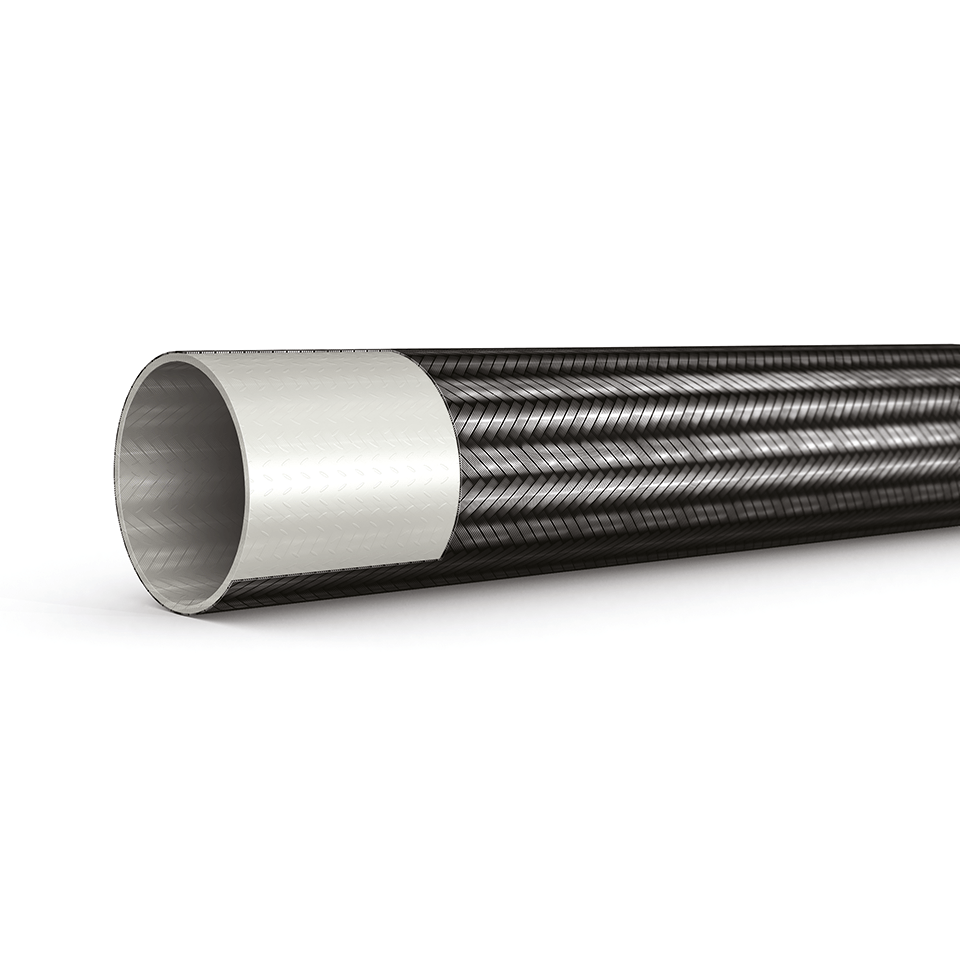

Stainless Steel Braided PTFE Hose
Construction:
• Extruded Tefl on manufactured from virgin PTFE resin with AISI 304 stainless steel, high-tensile braid
• Antistatic version available on request
Application:
Hose range has excellent mechanical resistance for vibration and fl exing. FDA approved resin that guarantees food, cosmetic and pharmaceutical, as well as laundry equipment, plastic moulding presses and compressor discharge applications. Burst pressure exceeds three times working pressure.
Temperature Range: -70°C to +260°C
Your item(s) have been added to your shopping basket
Stainless Steel Braided PTFE Hose
- Technical specs
| Part number | Variation name | Outside diameter in millimetres | Bend radius in millimetres | Burst pressure in bar | Maximum gauge pressure in bar | Burst pressure | Vacuum level in inches of mercury | Thread size | Thread size in millimetres | Thread size in UNF | Size of inlet thread | Size of outlet thread | To suit internal diameter of hose | To suit metric internal diameter of hose | To suit metric outside | Flange size | Seal Type | Working temp | Output Signal mA | Litres per Minute | Mpa Working pressure | Micron Rating for filtration | To Suit | Notes | Length MM | Hole Centres in mm | Height in MM | Port Size | Oem Code | Element Media | Old Ref | Material | Model | Box QTY | Bypass in PSIG | Float Material | Flow rate in cubic | Litres per second | ElemnentSize | Voltage | Max Litres per Minute | Wattage | OD In INCHES | Max working pressure | Size | Max Pressure for rotation | Displacement cm194 | Volume | Function | To suit Cartridge | Ratio | No. of Stations | Type | Frame Size | Group Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100STX-03 | 100STX, Smooth, Teflon | 8.1 | 64 | 264.0 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 100STX-04 | 100STX, Smooth, Teflon | 9.3 | 76 | 224.0 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 100STX-05 | 100STX, Smooth, Teflon | 11.1 | 102 | 207.0 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 100STX-06 | 100STX, Smooth, Teflon | 13.4 | 127 | 183.0 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 100STX-08 | 100STX, Smooth, Teflon | 16.6 | 152 | 161.0 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 100STX-10 | 100STX, Smooth, Teflon | 19.9 | 178 | 114.0 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 100STX-12 | 100STX, Smooth, Teflon | 23.1 | 203 | 103.0 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| 100STX-16 | 100STX, Smooth, Teflon | 29.8 | 305 | 80.0 |
