100R7 Non-Conductive

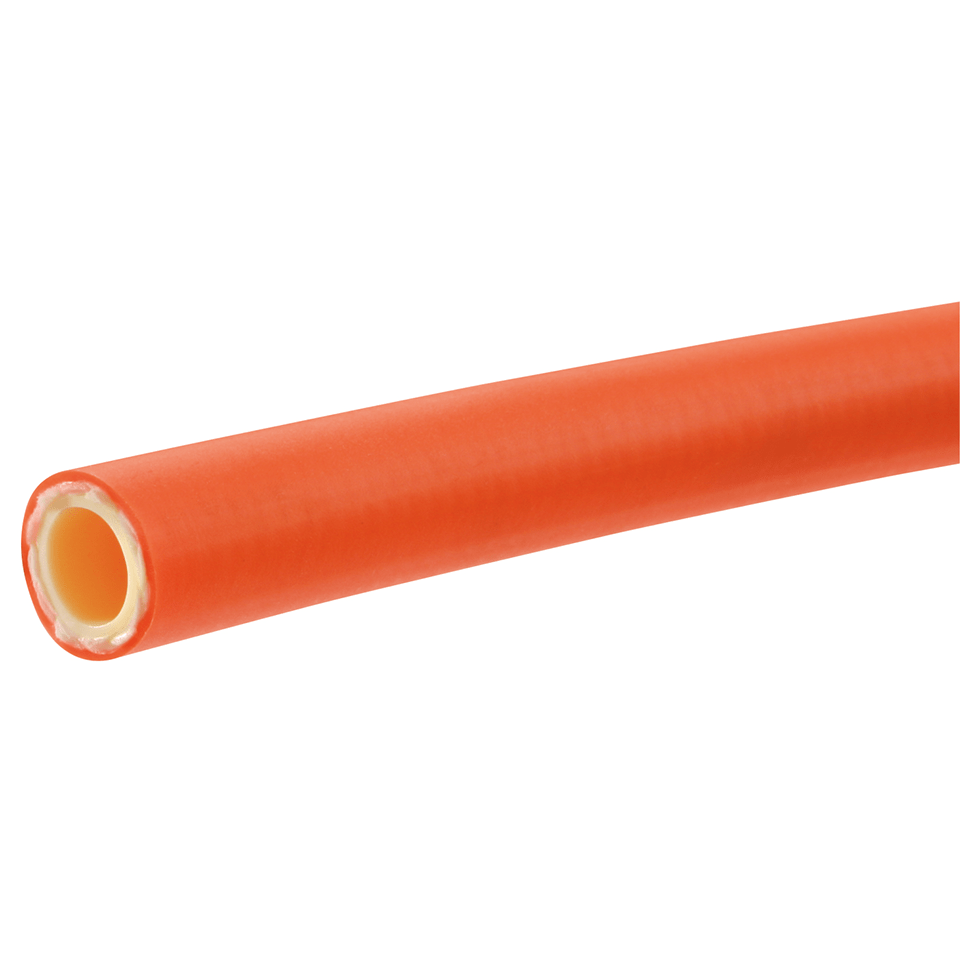

Construction: • Inner tube: polyester • Reinforcement: braided high-tensile aramid fi bre • Cover: orange, non-perforated, non-stick, polyurethane cover, electrically non-conductive Application: Hose range suitable for applications such as electric utility truck hydraulic systems, mobile equipment (picker, utility vehicles). Burst pressure exceeds four times working pressure. Hose specifi cation meets or exceeds requirements of SAE J517 100 R7 Non-conductive Hose Construction. Temperature Range: -40°C to +100°C
Hydraulics Hydraulic Hose Range
37NC, 100R7
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm115 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
37NC-03 37NC, 100R7 11.4 20 0.07 210.0
37NC-04 37NC, 100R8 13.7 32 0.09 192.0
37NC-05 37NC, 100R9 15.6 45 0.11 175.0
37NC-06 37NC, 100R10 18.4 51 0.14 157.0
37NC-08 37NC, 100R11 22.5 75 0.21 140.0
37NC-12 37NC, 100R12 25.8 127 0.30 87.0
37NC-16 37NC, 100R13 36.7 203 0.40 70.0
