Sight Glasses

Hydraulics Hydraulic Accessories

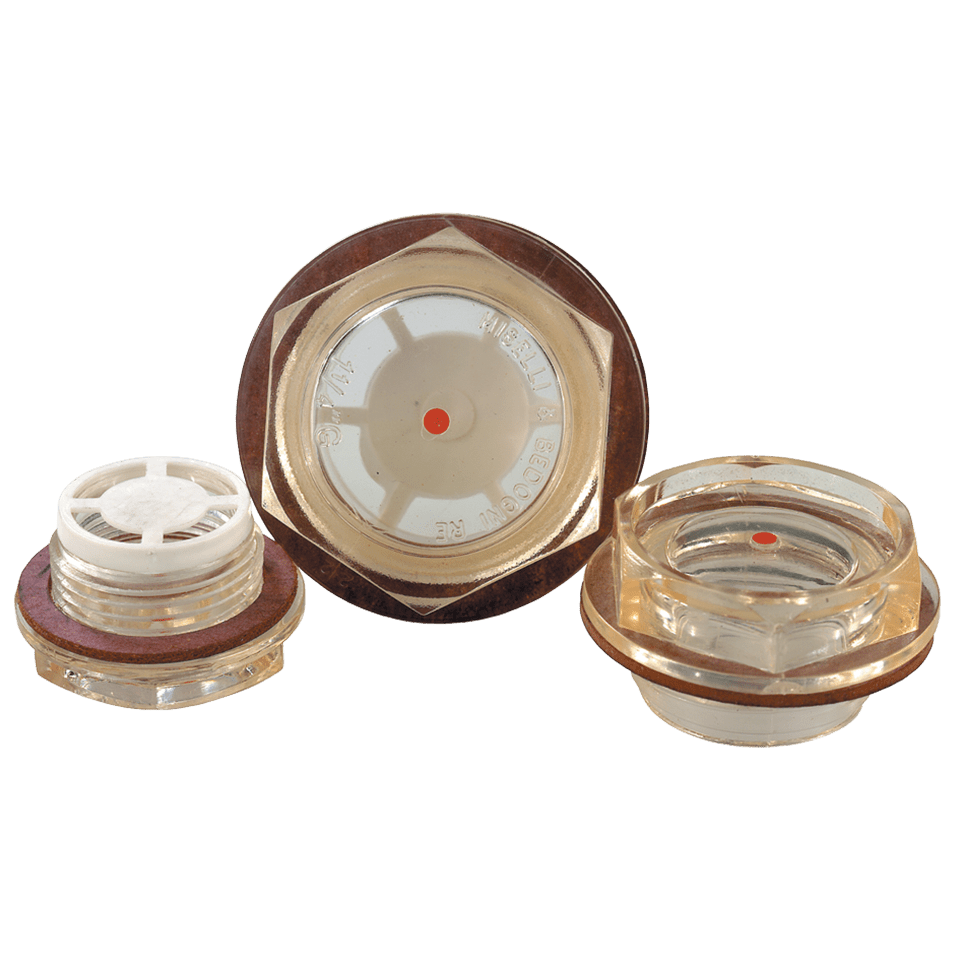

Plastic Oil Sight Glasses, BSPP
Specifications
• Housing in polyamide, transparent, high mechanical stability, non-ageing • Fluid compatibility: mineral based oils and solvents
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm5851 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
K5604120014 Plastic Oil Sight Glasses, BSPP 3 1/4” 100 17
K56041201415 Plastic Oil Sight Glasses, BSPP 3 M14 x 1.5 100 17
K5604122038 Plastic Oil Sight Glasses, BSPP 3 3/8” 100 18
K56041221615 Plastic Oil Sight Glasses, BSPP 3 M16 x 1.5 100 18
K56041251815 Plastic Oil Sight Glasses, BSPP 3 M18 x 1.5 100 21
K5604128012 Plastic Oil Sight Glasses, BSPP 3 1/2” 100 24
K56041282015 Plastic Oil Sight Glasses, BSPP 3 M20 x 1.5 100 24
K5604135034 Plastic Oil Sight Glasses, BSPP 3 3/4” 100 30
K5604143100 Plastic Oil Sight Glasses, BSPP 3 1" 100 35
K5604151114 Plastic Oil Sight Glasses, BSPP 3 1.1/4” 100 42
K5604158112 Plastic Oil Sight Glasses, BSPP 3 1.1/2” 100 50
K5604174200 Plastic Oil Sight Glasses, BSPP 3 2” 100 64
K5604222038 Plastic Oil Sight Glasses with Refl ector, BSPP 3 3/8” 100 18
K56042221615 Plastic Oil Sight Glasses with Refl ector, BSPP 3 M16 x 1.5 100 18
K56042251815 Plastic Oil Sight Glasses with Refl ector, BSPP 3 M18 x 1.5 100 21
K5604228012 Plastic Oil Sight Glasses with Refl ector, BSPP 3 1/2” 100 24
K56042282015 Plastic Oil Sight Glasses with Refl ector, BSPP 3 M20 x 1.5 100 24
K5604235034 Plastic Oil Sight Glasses with Refl ector, BSPP 3 3/4” 100 30
K5604243100 Plastic Oil Sight Glasses with Refl ector, BSPP 3 1" 100 35
K5604251114 Plastic Oil Sight Glasses with Refl ector, BSPP 3 1.1/4” 100 42
K5604258112 Plastic Oil Sight Glasses with Refl ector, BSPP 3 1.1/2” 100 50
K5604274200 Plastic Oil Sight Glasses with Refl ector, BSPP 3 2” 100 64
K56062420 Push-in Plastic Oil Sight Glasses with Reflector 20.0 100
K56063026 Push-in Plastic Oil Sight Glasses with Reflector 26.0 100
K56063632 Push-in Plastic Oil Sight Glasses with Reflector 32.0 100
K56064238 Push-in Plastic Oil Sight Glasses with Reflector 38.0 100
K56064440 Push-in Plastic Oil Sight Glasses with Reflector 40.0 100
K560822038 Dome Oil Level Sight Glasses, BSPP 3/8" 19
K560828012 Dome Oil Level Sight Glasses, BSPP 1/2" 24
K560835034 Dome Oil Level Sight Glasses, BSPP 3/4" 30
K560842100 Dome Oil Level Sight Glasses, BSPP 1" 36
K561020014 Aluminium Oil Level Sight Glasses, BSPP 3 1/4" 100 18
K561024038 Aluminium Oil Level Sight Glasses, BSPP 3 3/8" 100 22
K561029012 Aluminium Oil Level Sight Glasses, BSPP 3 1/2" 100 27
MTC-300 300 Magnetic Tank Cleaner 300
MTC-450 450 Magnetic Tank Cleaner 450
MTC-525 525 Magnetic Tank Cleaner 525
MTC-600 600 Magnetic Tank Cleaner 600
