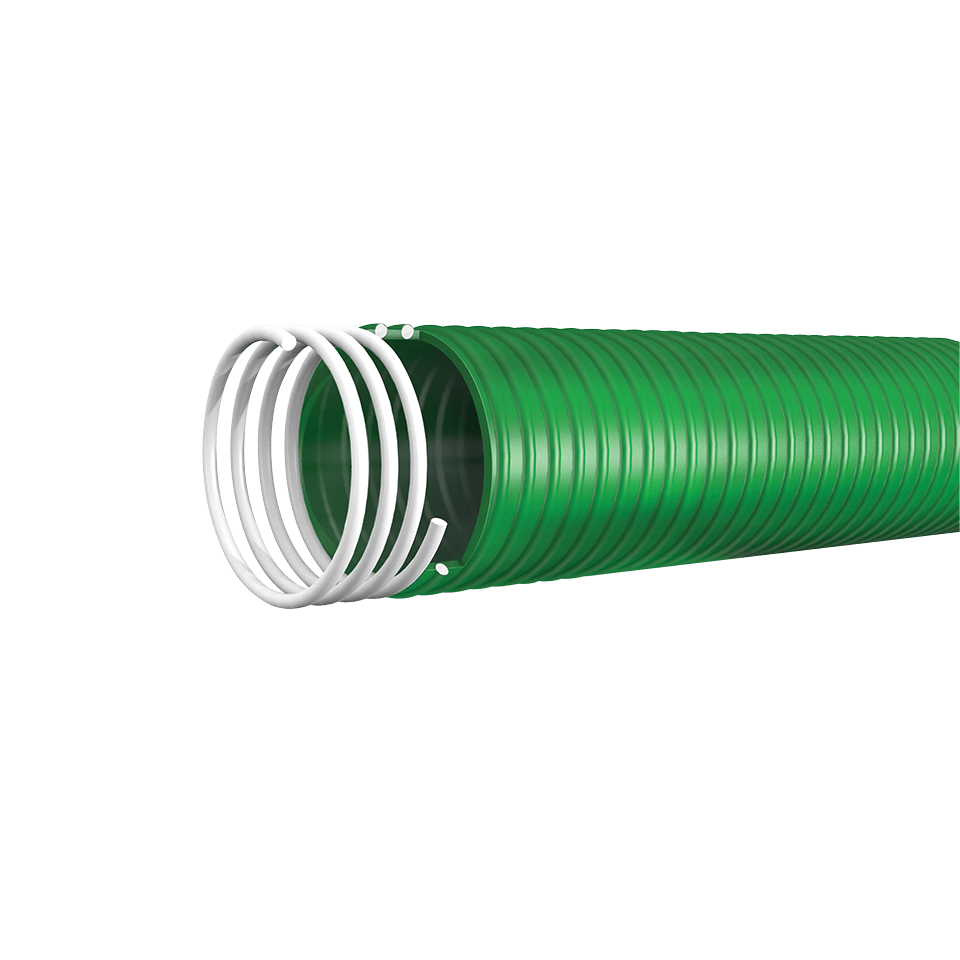

Medium Duty Suction Hose
Your item(s) have been added to your shopping basket
Medium Duty Suction Hose
- Technical specs
| Part number | Variation name | Inside diameter | Wall thickness in mm | Max gauge pressure in bar | Bend radius in mm |
|---|---|---|---|---|---|
| MDS1-10 | Olive Green, 10 Metre Coils | 1" | 3.8 | 7 | 125 |
| MDS1-30 | Olive Green, 30 Metre Coils | 1" | 3.8 | 7 | 125 |
| MDS112-10 | Olive Green, 10 Metre Coils | 1.1/2" | 4.4 | 6 | 190 |
| MDS112-30 | Olive Green, 30 Metre Coils | 1.1/2" | 4.4 | 6 | 190 |
| MDS114-10 | Olive Green, 10 Metre Coils | 1.1/4" | 4 | 7 | 160 |
| MDS114-30 | Olive Green, 30 Metre Coils | 1.1/4" | 4 | 7 | 160 |
| MDS2-10 | Olive Green, 10 Metre Coils | 2" | 4.8 | 5 | 250 |
| MDS2-30 | Olive Green, 30 Metre Coils | 2" | 4.8 | 5 | 250 |
| MDS212-10 | Olive Green, 10 Metre Coils | 2.1/2" | 5.2 | 4.5 | 315 |
| MDS212-30 | Olive Green, 30 Metre Coils | 2.1/2" | 5.2 | 4.5 | 315 |
| MDS3-10 | Olive Green, 10 Metre Coils | 3" | 5.2 | 5 | 300 |
| MDS3-30 | Olive Green, 30 Metre Coils | 3" | 5.2 | 5 | 300 |
| MDS312-10 | Olive Green, 10 Metre Coils | 3.1/2" | 5.5 | 4 | 375 |
| MDS312-30 | Olive Green, 30 Metre Coils | 3.1/2" | 5.5 | 4 | 375 |
| MDS34-30 | Olive Green, 30 Metre Coils | 3/4" | 3.6 | 7 | 100 |
| MDS4-10 | Olive Green, 10 Metre Coils | 4" | 6.3 | 4 | 400 |
| MDS4-30 | Olive Green, 30 Metre Coils | 4" | 6.3 | 4 | 400 |
| MDS6-10 | Olive Green, 10 Metre Coils | 6" | 7.5 | 3 | 800 |
| MDS6-30 | Olive Green, 30 Metre Coils | 6" | 7.5 | 3 | 800 |
| MDS6-6 | Olive Green, 6 Metre Straight Length | 6" | 7.5 | 3 | 800 |
