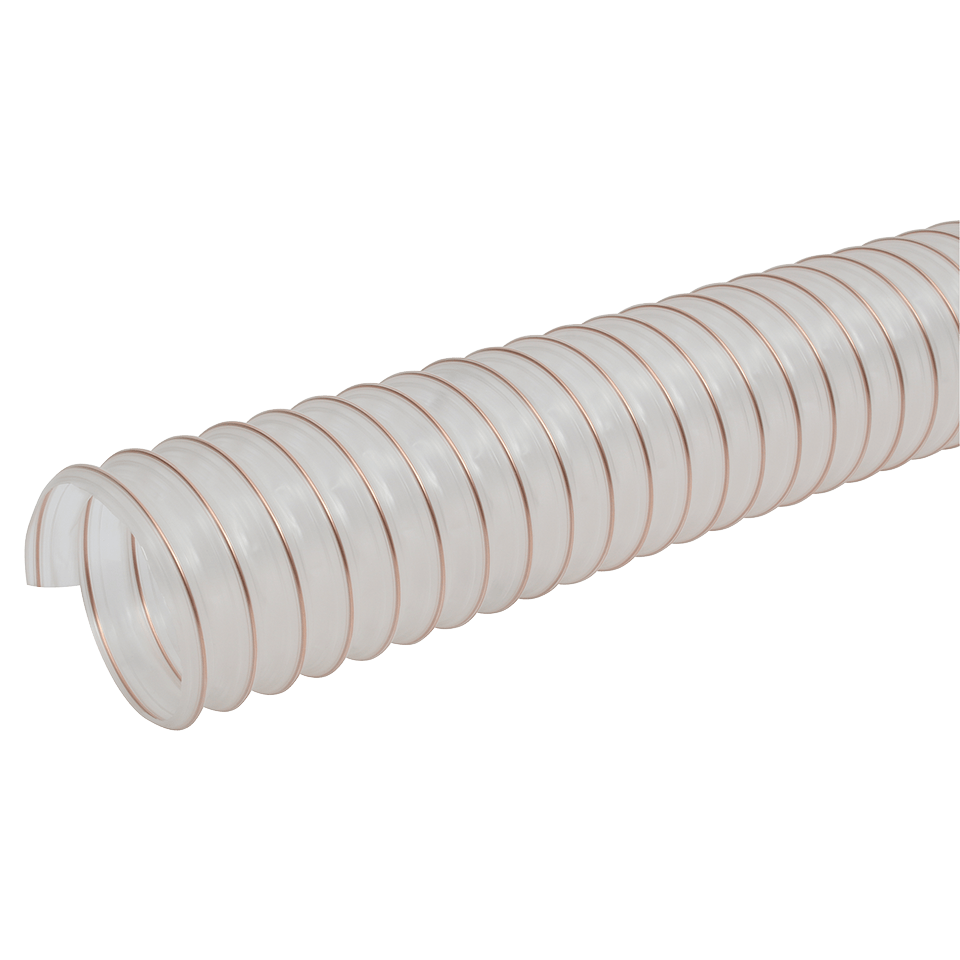

Lightweight High Performance Polyurethane

Hose, Tubing & Couplings Industrial PUR Ducting
0.4mm Wall Thickness, 10 Metres
  • Technical specs
Part number Variation name Inside diameter mm Outside diameter in mm Max gauge pressure in bar Vacuum level in bar Weight per kilogram
PURLW-100 0.4mm Wall Thickness, 10 Metres 100 108 0.245 0.055 0.510
PURLW-115 0.4mm Wall Thickness, 10 Metres 115 123 0.210 0.050 0.580
PURLW-120 0.4mm Wall Thickness, 10 Metres 120 128 0.205 0.045 0.610
PURLW-125 0.4mm Wall Thickness, 10 Metres 125 133 0.195 0.045 0.630
PURLW-130 0.4mm Wall Thickness, 10 Metres 130 138 0.185 0.040 0.660
PURLW-140 0.4mm Wall Thickness, 10 Metres 140 148 0.175 0.040 0.710
PURLW-150 0.4mm Wall Thickness, 10 Metres 150 158 0.160 0.035 0.760
PURLW-160 0.4mm Wall Thickness, 10 Metres 160 168 0.150 0.035 0.810
PURLW-180 0.4mm Wall Thickness, 10 Metres 180 188 0.135 0.030 0.900
PURLW-200 0.4mm Wall Thickness, 10 Metres 200 208 0.120 0.025 1.030
PURLW-225 0.4mm Wall Thickness, 10 Metres 225 234 0.110 0.020 1.160
PURLW-250 0.4mm Wall Thickness, 10 Metres 250 259 0.100 0.020 1.280
PURLW-38 0.4mm Wall Thickness, 10 Metres 38 46 0.630 0.245 0.220
PURLW-50 0.4mm Wall Thickness, 10 Metres 50 58 0.480 0.170 0.280
PURLW-60 0.4mm Wall Thickness, 10 Metres 60 68 0.405 0.145 0.340
PURLW-65 0.4mm Wall Thickness, 10 Metres 65 73 0.370 0.130 0.360
PURLW-75 0.4mm Wall Thickness, 10 Metres 75 83 0.325 0.115 0.410
PURLW-80 0.4mm Wall Thickness, 10 Metres 80 88 0.305 0.110 0.440
PURLW-90 0.4mm Wall Thickness, 10 Metres 90 98 0.270 0.095 0.490
